Description

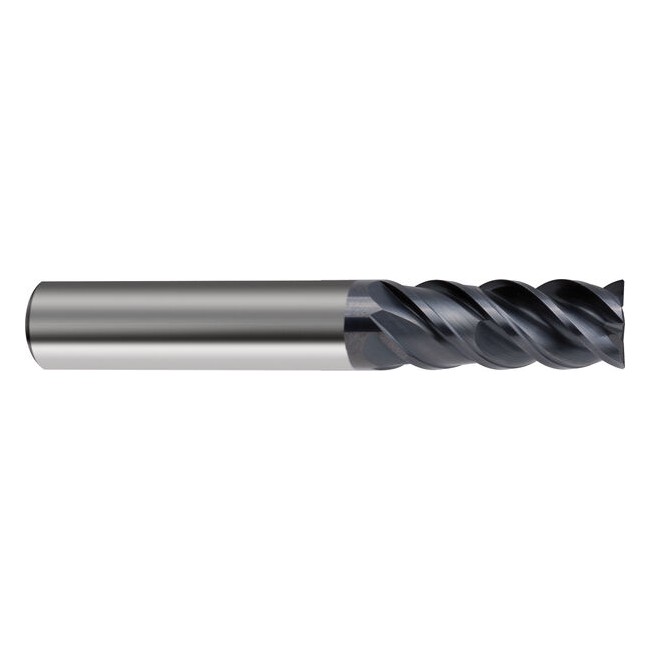

The Guhring 6765, also known as the RF 100 Speed M, is a high-performance solid carbide ratio end mill engineered for High-Performance Cutting (HPC) and High-Speed Machining (HSM). It is specifically designed for roughing and slotting operations across a versatile range of materials, including difficult-to-machine alloys like stainless steel, titanium, and nickel-based superalloys. The “Speed” designation signifies its capability for high metal removal rates (MRR) while maintaining exceptional process stability and tool life.
Features:
- Unequal Helix Angle (48°): Reduces vibration and chatter for superior surface finish.
- TiAlN-SuperA Coating: Exceptional thermal stability and wear resistance.
- Reinforced Core: Enhanced stability and deflection prevention.
- GTC Compatible: Optimized for Guhring Trochoidal Cutting strategies.
Specifications:
- Diameter: 6.0mm
- Shank Diameter: 6.0mm
- Total Length: 57.0mm
- Usable Length: 21.0mm
- Series: RF 100 Speed M
- Material: Ultra-fine grain Solid Carbide
- Flutes: 4
- Application: P, M, K, N, S (Steel, Stainless, Cast Iron, Alum, Superalloys)
